• Materials:
    CI
    i

    AL = Aluminium

    S = Steel

    SS = Stainless Steel

    CI = Cast Iron

  • Stock finishes:
    PR
  • Operating
    up to:
    6bar
  • Guarantee:
    10yrs

Clasico

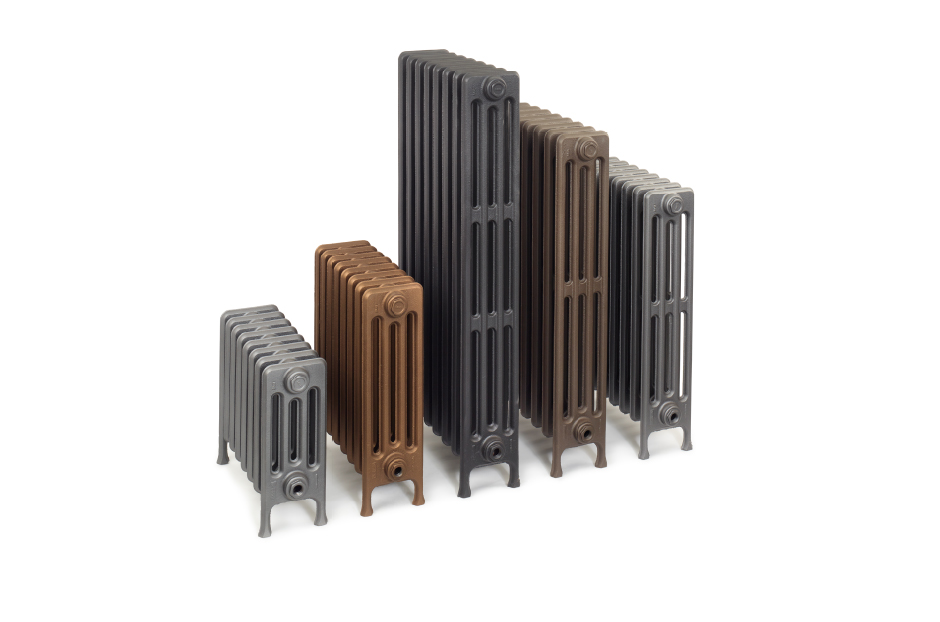

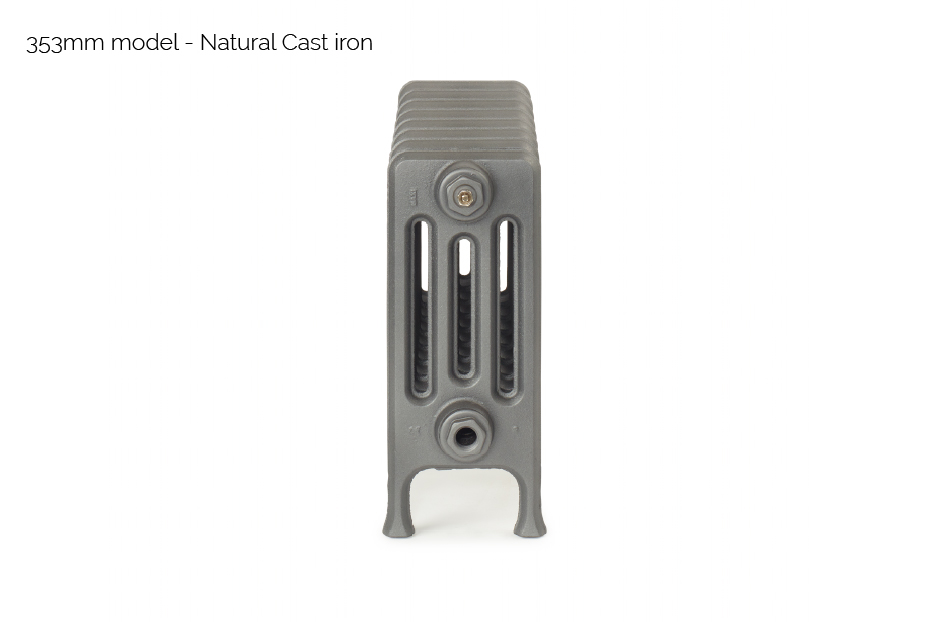

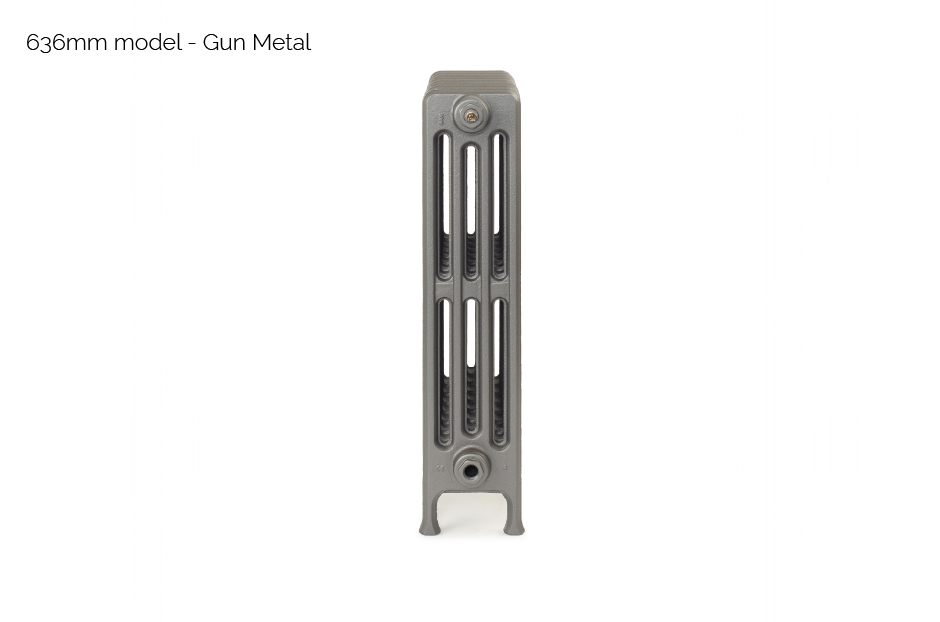

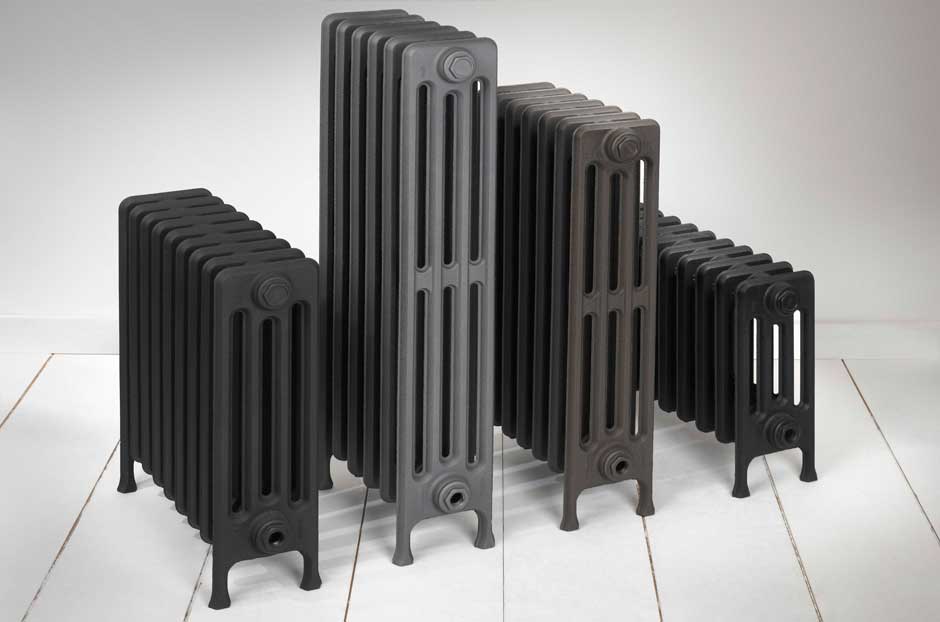

The Clasico is made from cast iron and supplied in white primer as standard that requires over painting, while painted finishes are available at additional cost. The radiator has a maximum working pressure of 6 bar with a maximum test pressure of 7.8 bar (water test only). Feet and wall ties are supplied as standard, while a wall mounted version can also be specified at no additional cost. All radiators are supplied with ½” bsp-f (BBOE) connections or ¾” connections, while TBOE or TBSE connections are also available (to be specified at time of order). The Clasico radiator carries a 10-year guarantee against manufacturing defects. Clasico is supplied as standard with integrated feet and all fixing/ties.

  • Materials:
    CI
    i

    AL = Aluminium

    S = Steel

    SS = Stainless Steel

    CI = Cast Iron

  • Stock finishes:
    PR
  • Operating
    up to:
    6bar
  • Guarantee:
    10yrs

Product information

Height 288mm to 870mm (footed models are 65mm higher)
Width Modular
Type 4 column
Output

40.8 watts per section (816 watts per metre) to 116.4 watts per section (2116 watts per metre)

Colour options

Colours

  • Traffic White (semi-gloss)

    RAL 9016

  • Warm White (semi-gloss)

    RAL 9010

  • Cream White (semi-gloss)

    RAL 9001

  • Pearl White (semi-gloss)

    RAL 1013

  • Light Grey (semi-gloss)

    RAL 7035

  • Slate Grey (semi-gloss)

    RAL 7015

  • Anthracite Grey (semi-gloss)

    RAL 7016

  • Black (matt)

  • Flame Red (semi-gloss)

    RAL 3003

  • Grey Aluminium (semi-gloss)

    RAL 9007

  • Pearl Dark Grey (semi-gloss)

    RAL 9023

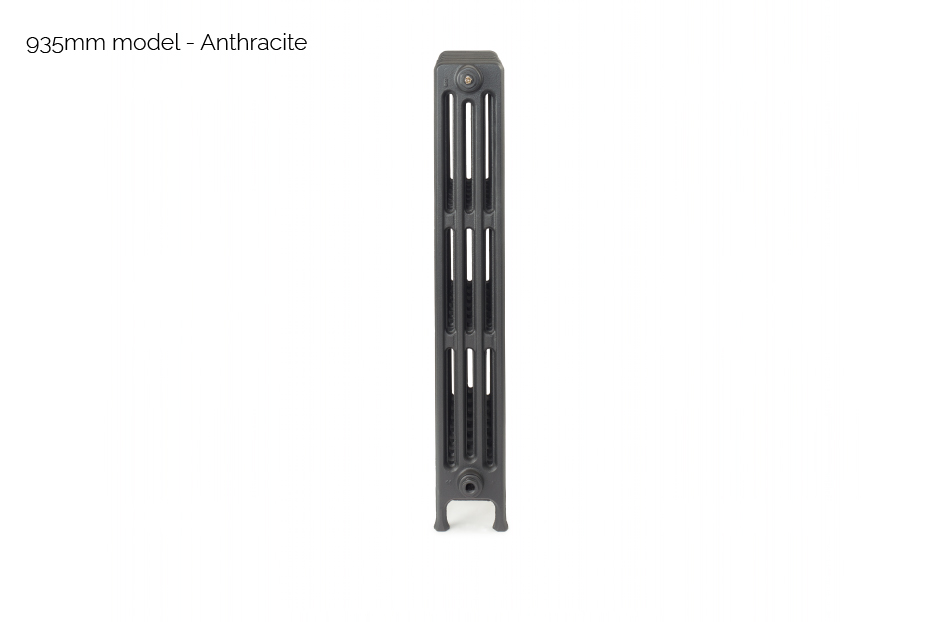

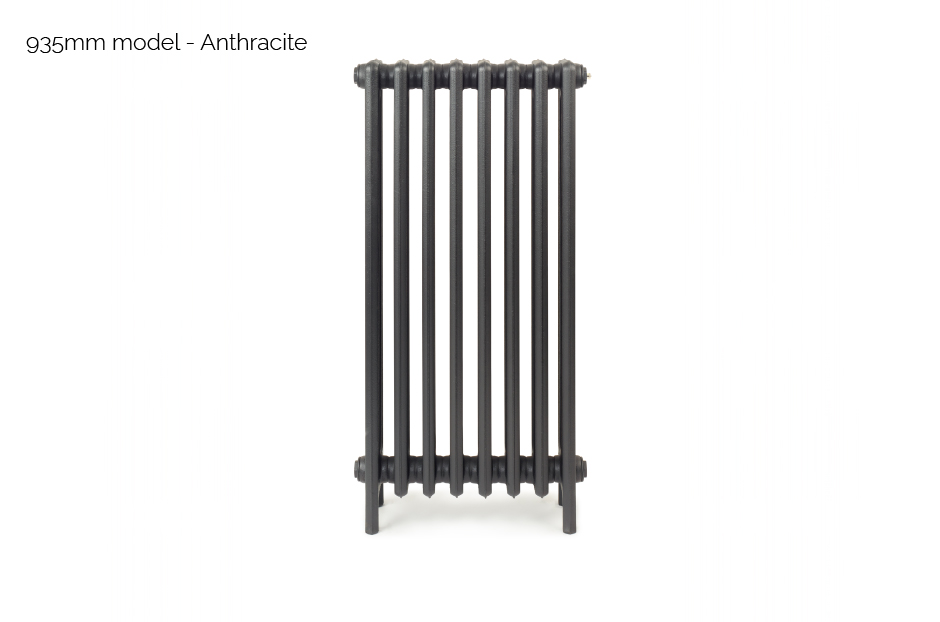

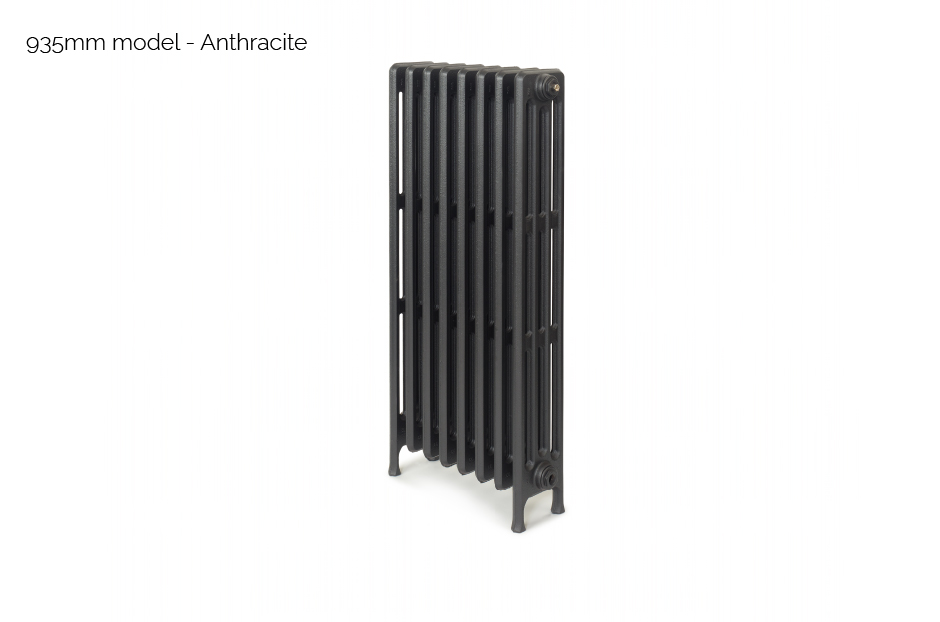

  • Anthracite (matt)

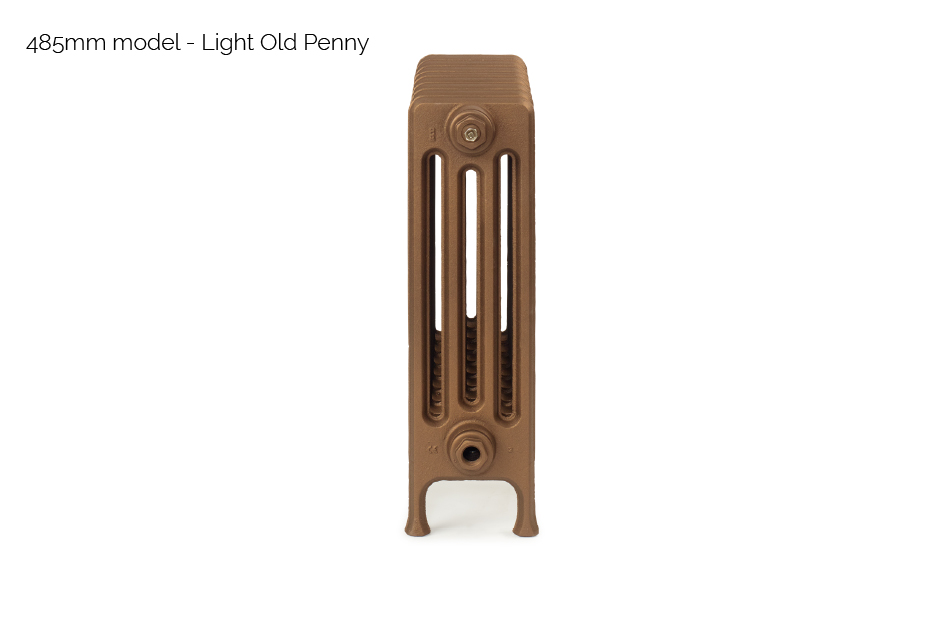

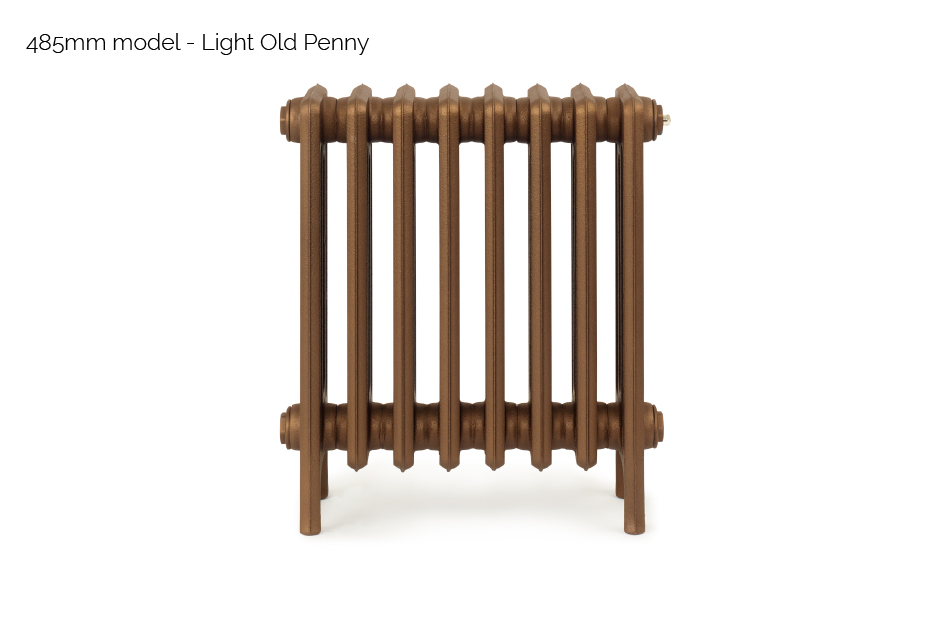

  • Light Old Penny (matt)

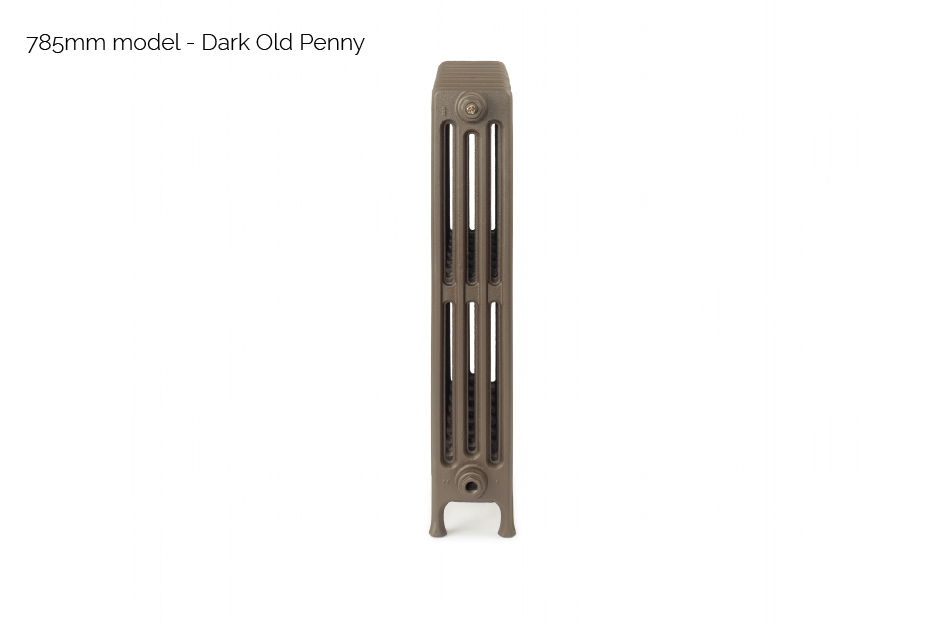

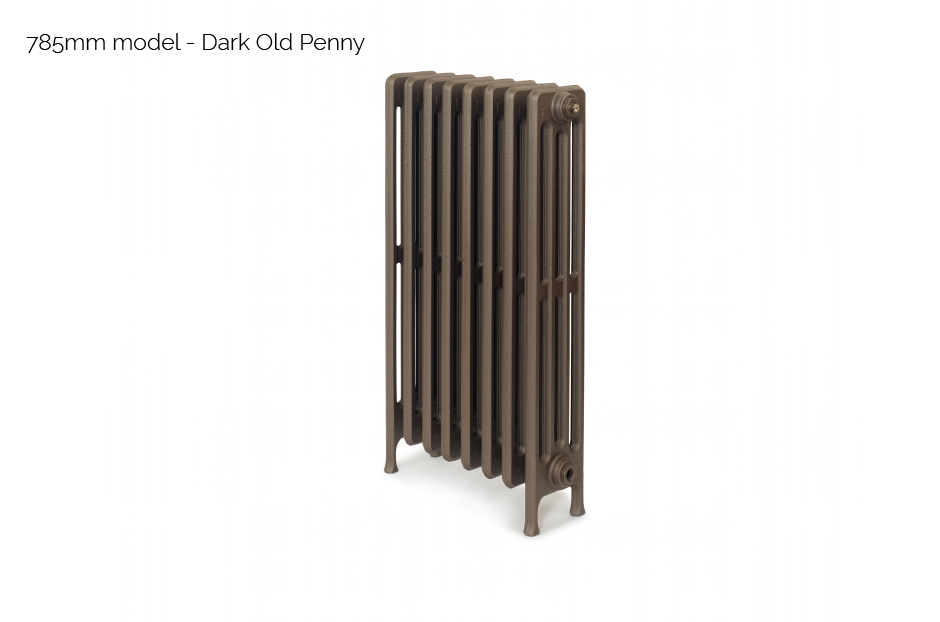

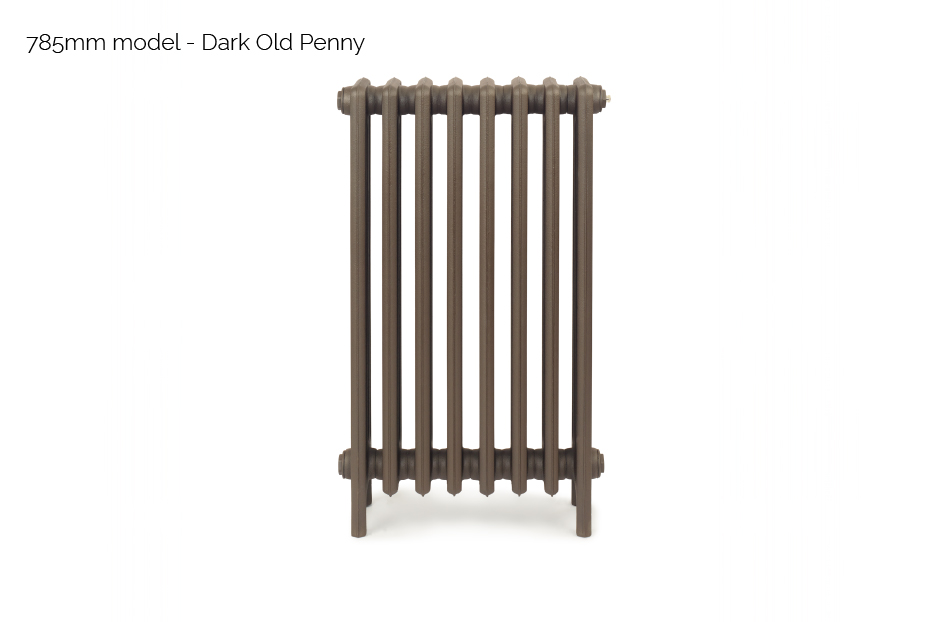

  • Dark Old Penny (matt)

  • Natural Cast Iron (matt)

  • Pewter (matt)

  • Antique Gold (matt)

  • Bronze (gloss)

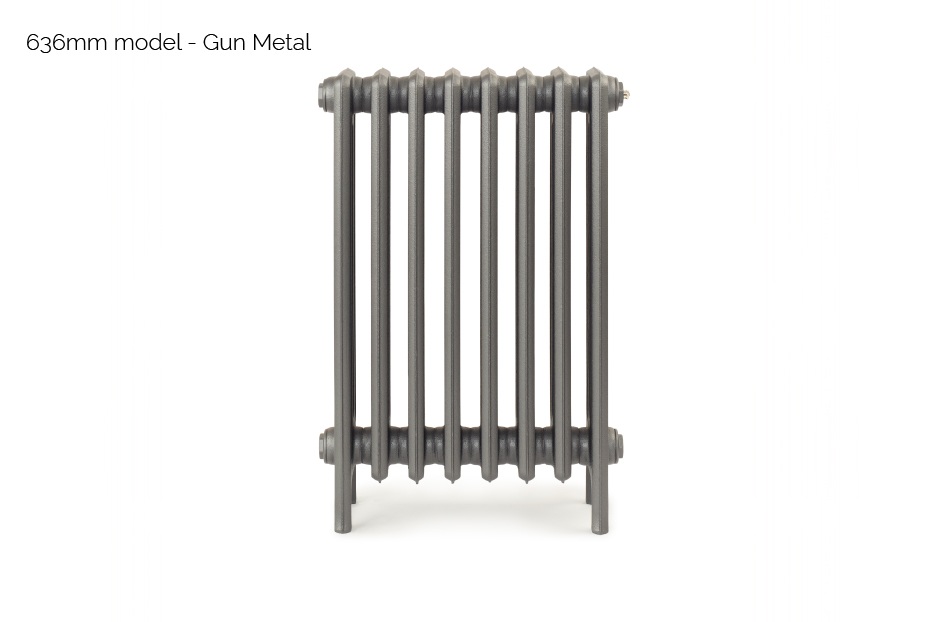

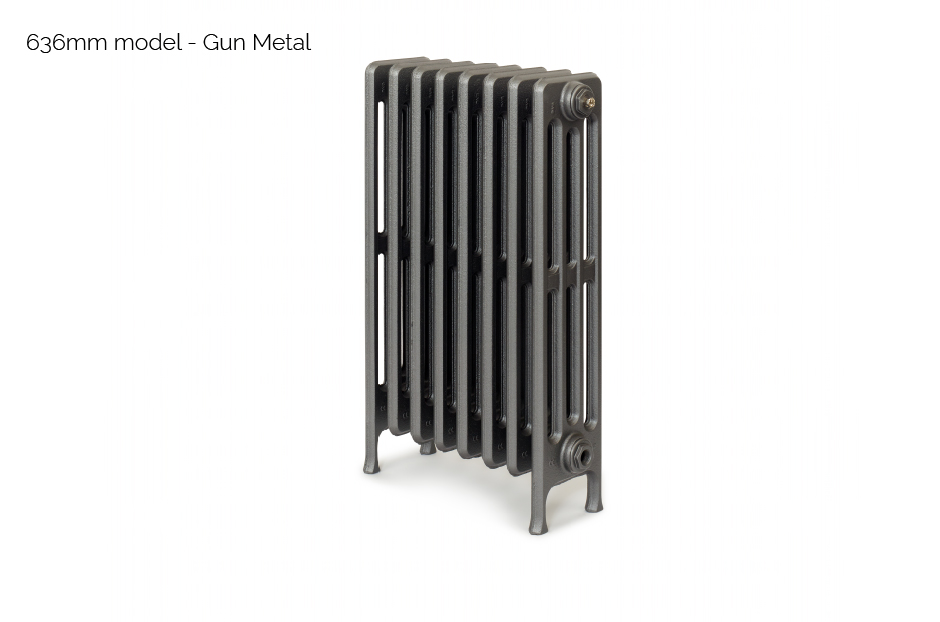

  • Gun Metal (matt)

  • MHS cast iron polished finish
