Liberty
-
- Materials:
- CI
i -
- Stock finishes:
- PR
-
- Operating
up to: - 6bar
- Operating
-
- Guarantee:
- 10yrs

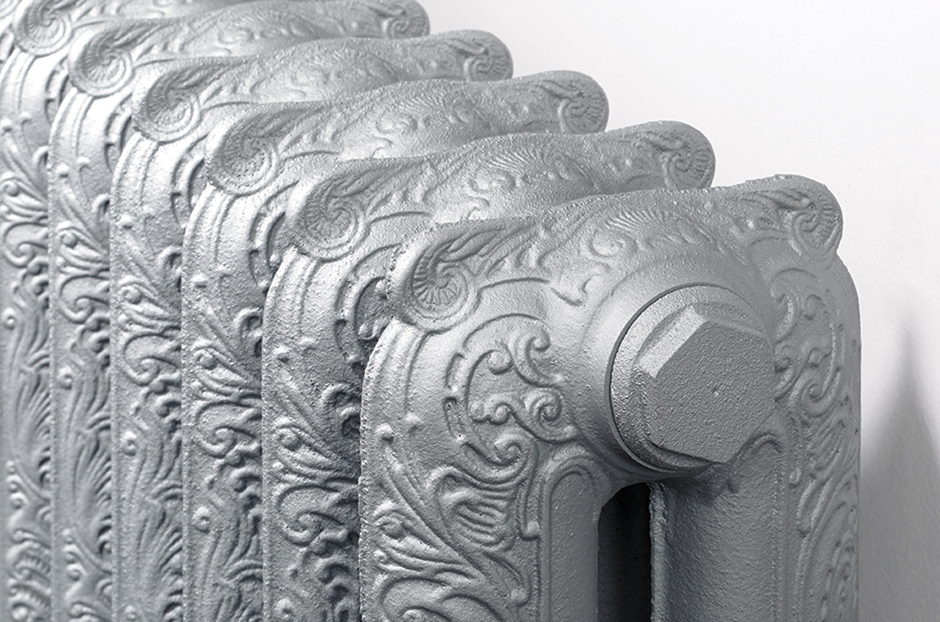

The Liberty is made from cast iron and supplied in Umber Grey Primer as standard that requires over painting, with painted finishes available at additional cost. The radiator has a maximum working pressure of 6 bar with a maximum test pressure of 7.8 bar (water test only). Feet and wall ties are supplied as standard. All radiators are supplied with ½” bsp-f (BBOE) connections, ¾”or 1” connections, while TBOE or TBSE connections are also available (to be specified at time of order). The Liberty radiator carries a 10-year guarantee against manufacturing defects.
Product information
| Height | 510mm to 954mm |
| Width | Modular (76mm per section) |
| Type | 2 column |
| Output | 74 watts per section (974 watts per metre) to 151 watts per section (1987 watts per metre) |
-
Cast Iron Assembly, Build and Installation Guide
Download Cast Iron Assembly, Build and Installation Guide -
MHS Radiators Specification Guide - Edition 4
Download MHS Radiators Specification Guide - Edition 4
Colour Chart 2 - MHS Classic colour finishes
-
Traffic White (semi-gloss)
Code RAL 9016
-
Warm White (semi-gloss)
Code RAL 9010
-
Cream White (semi-gloss)
Code RAL 9001
-
Pearl White (semi-gloss)
Code RAL 1013
-
Light Grey (semi-gloss)
Code RAL 7035
-
Slate Grey (semi-gloss)
Code RAL 7015
-
Anthracite Grey (semi-gloss)
Code RAL 7016
-
Black (matt)
-
Flame Red (semi-gloss)
Code RAL 3003
-
Grey Aluminium (semi-gloss)
Code RAL 9007
-
Pearl Dark Grey (semi-gloss)
Code RAL 9023
-
Anthracite (matt)
-
Light Old Penny (matt)
-
Dark Old Penny (matt)
-
Natural Cast Iron (matt)
-
Pewter (matt)
-
Antique Gold (matt)
-
Bronze (gloss)
-
Gun Metal (matt)
-
Beaten Brass (semi-gloss)
Colour Chart 2 - MHS Special effects finishes
-
Stone
-
Black Chrome
-
Chrome Effect
-
Brass
-
Rose Gold
-
Corten
-
Blue Chrome
