MHS Radiators

Galant Plan Horizontal

  • Sizes:
    199
  • Materials:
    ST
    i

    AL = Aluminium

    S = Steel

    SS = Stainless Steel

    CI = Cast Iron

  • Stock finishes:
    WHT
  • Operating
    up to:
    6bar
  • Delivery:
    6-8weeks
  • Guarantee:
    10yrs

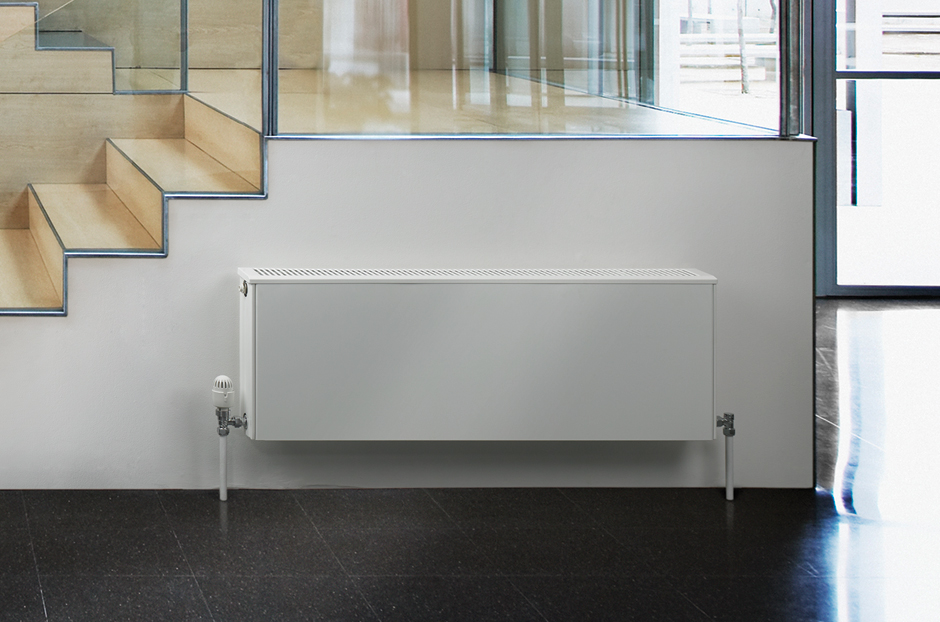

The Galant Plan horizontal radiator is manufactured from 1.2mm steel with a 0.5mm aluminium front plate, ensuring a rapid and efficient heat transfer.

The Galant Plan offers multiple connection options, with 4 side 1/2″ BSP-f connections and 2 underside 1/2″ BSP-f connections. The underside connections can be on the left or right side, to be specified when ordering. All horizontal models are supplied with welded side panels, which, combined with optional top grille security clips, make it the perfect radiator for high-traffic environments such as schools and hospitals. The MHS Galant Plan carries a 10-year guarantee against manufacturing defects.

BIM models available here

Scroll to read more

  • Sizes:
    199
  • Materials:
    ST
    i

    AL = Aluminium

    S = Steel

    SS = Stainless Steel

    CI = Cast Iron

  • Stock finishes:
    WHT
  • Operating
    up to:
    6bar
  • Delivery:
    6-8weeks
  • Guarantee:
    10yrs

Product information

Height 200mm – 900mm
Width 400mm – 2000mm

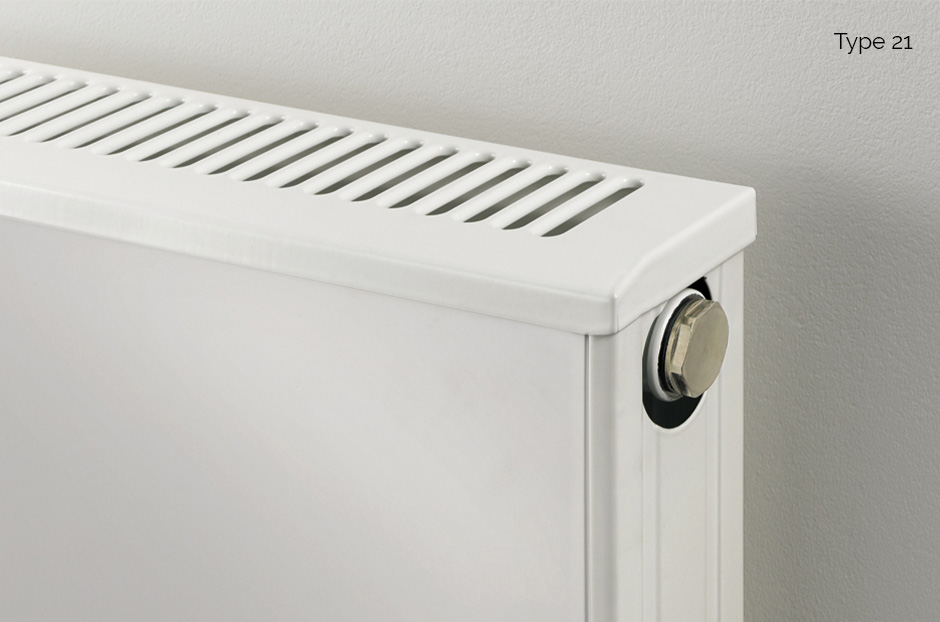

Type Type 20, Type 21, Type 22, Type 33
Output

336-4102 watts

Colours

  • Traffic White

    Code RAL 9016

Colour Matching Available

Complementary accessories
