• Sizes:
    1813
  • Materials:
    S
    i

    AL = Aluminium

    S = Steel

    SS = Stainless Steel

    CI = Cast Iron

  • Stock finishes:
    WHT
  • Operating
    up to:
    6bar
  • Guarantee:
    5yrs

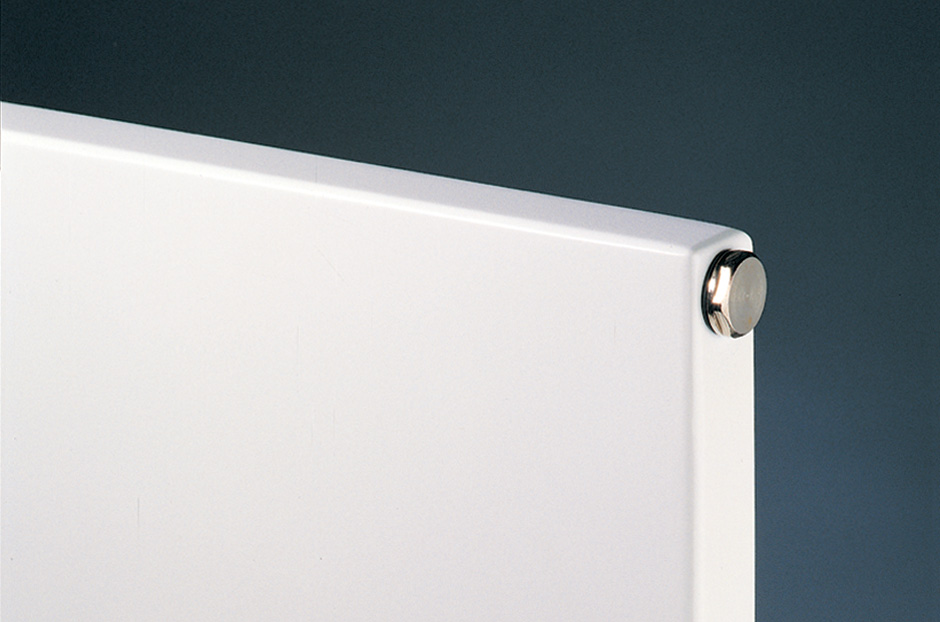

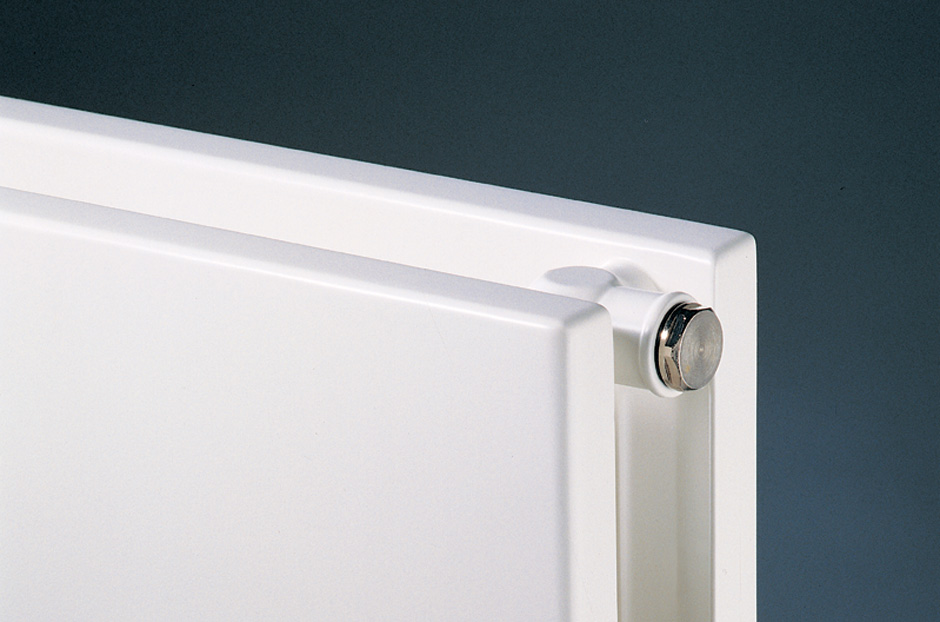

Monoplan Horizontal

The Monoplan Horizontal Standard range is made from steel (2mm front panel and 1.25mm internal panel) and finished in RAL 9016 Traffic White as standard, with other RAL colours available at additional cost. It has a 6 bar maximum working pressure (mwp) tested to 7.8 bar, while a high pressure version (10 bar mwp, 13 bar test) is also available at additional cost. The Monoplan radiator has ½” bsp-f connections, with horizontal (BBOE B1D1 detail) as standard, unless otherwise specified. Alternative configurations are also available; these must be specified with each order.

BIM models available here

  • Sizes:
    1813
  • Materials:
    S
    i

    AL = Aluminium

    S = Steel

    SS = Stainless Steel

    CI = Cast Iron

  • Stock finishes:
    WHT
  • Operating
    up to:
    6bar
  • Guarantee:
    5yrs

Product information

Height 220mm to 950mm
Width 400mm to 4000mm
Type Type 10, Type 11, Type 20, Type 21, Type 22, Type 30, Type 33
Output

111 watts to 14756 watts

Colour options

Colours

  • Traffic White

    Code RAL 9016
