• Materials:
    CI
    i

    AL = Aluminium

    S = Steel

    SS = Stainless Steel

    CI = Cast Iron

  • Stock finishes:
    PR
  • Operating
    up to:
    6bar
  • Guarantee:
    10yrs

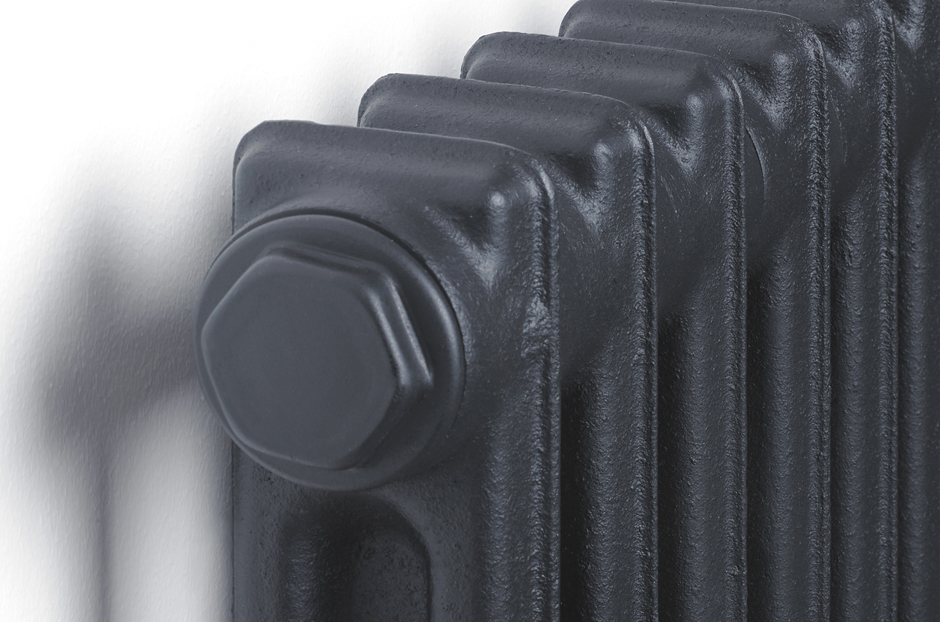

Ionic

The Ionic is a cast iron radiator supplied in Umber Grey Primer as standard that requires over painting, with painted finishes available at additional cost. The radiator has a maximum working pressure of 6 bar with a maximum test pressure of 7.8 bar (water test only). Integral feet and wall ties are supplied as standard, while a wall mounted version can also be specified at no additional cost. All radiators are supplied with ½” bsp-f (BBOE) connections, ¾”or 1” connections, while TBOE or TBSE connections are also available (to be specified at time of order). The Ionic radiator carries a 10-year guarantee against manufacturing defects.

BIM models are available here

  • Materials:
    CI
    i

    AL = Aluminium

    S = Steel

    SS = Stainless Steel

    CI = Cast Iron

  • Stock finishes:
    PR
  • Operating
    up to:
    6bar
  • Guarantee:
    10yrs

Product information

Height 300mm to 960mm
Width Modular (60mm per section)
Type 4 column, 6 column
Output

43.6 watts per section (727 watts per metre) to 138.7 watts per section (2312 watts per metre)

Colour options

Colours

  • Traffic White (semi-gloss)

    RAL 9016

  • Warm White (semi-gloss)

    RAL 9010

  • Cream White (semi-gloss)

    RAL 9001

  • Pearl White (semi-gloss)

    RAL 1013

  • Light Grey (semi-gloss)

    RAL 7035

  • Slate Grey (semi-gloss)

    RAL 7015

  • Anthracite Grey (semi-gloss)

    RAL 7016

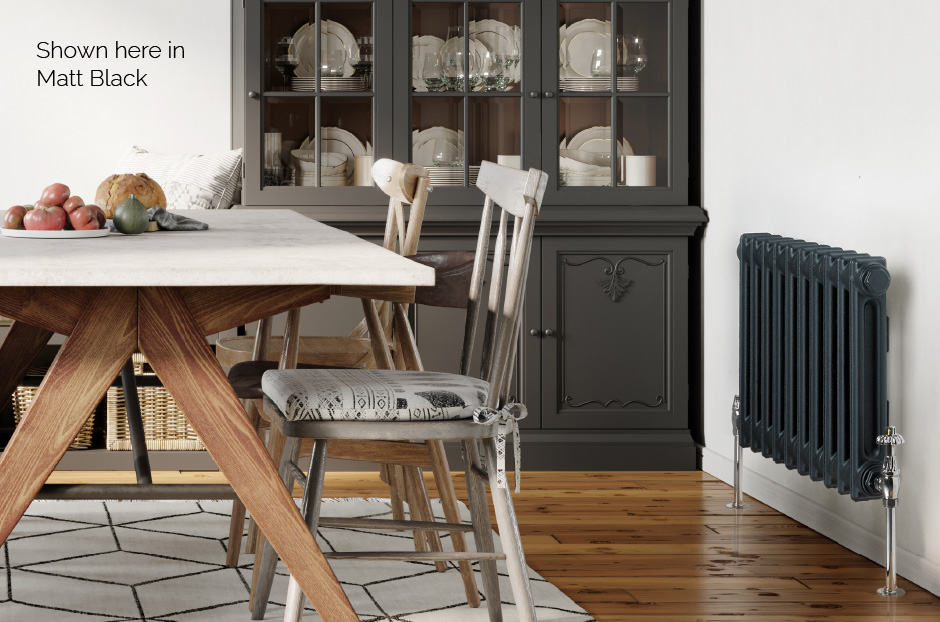

  • Black (matt)

  • Flame Red (semi-gloss)

    RAL 3003

  • Grey Aluminium (semi-gloss)

    RAL 9007

  • Pearl Dark Grey (semi-gloss)

    RAL 9023

  • Anthracite (matt)

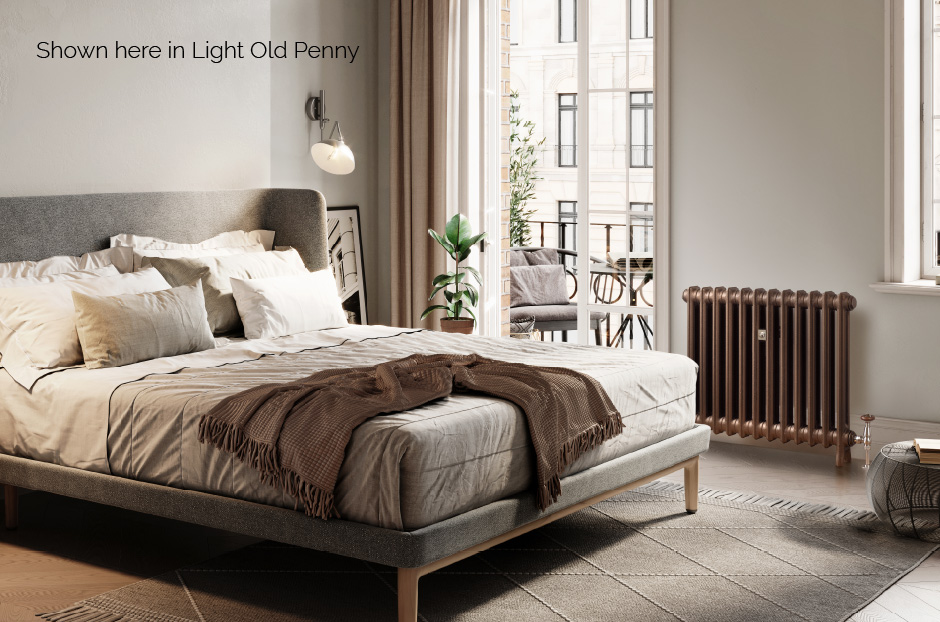

  • Light Old Penny (matt)

  • Dark Old Penny (matt)

  • Natural Cast Iron (matt)

  • Pewter (matt)

  • Antique Gold (matt)

  • Bronze (gloss)

  • Gun Metal (matt)

  • MHS cast iron polished finish
