MHS Radiators

Galant Horizontal

  • Sizes:
    239
  • Materials:
    ST
    i

    AL = Aluminium

    S = Steel

    SS = Stainless Steel

    CI = Cast Iron

  • Stock finishes:
    WHT
  • Operating
    up to:
    6bar
  • Delivery:
    3-4weeks
  • Guarantee:
    10yrs

The Galant horizontal is supplied with welded side panels, which, combined with optional top grille security clips, make it the perfect radiator for high-traffic environments such as schools and hospitals.

The Galant offers multiple connection options, with 4 side 1/2″ BSP-f connections and 2 underside 1/2″ BSP-f connections. As a reversible radiator, the underside connections can be on the left or right side.

Manufactured from 1.2mm steel, the Galant horizontal radiator has a 6 bar maximum working pressure (8 bar test). The MHS Galant carries a 10-year guarantee against manufacturing defects.

BIM models available here

Scroll to read more

  • Sizes:
    239
  • Materials:
    ST
    i

    AL = Aluminium

    S = Steel

    SS = Stainless Steel

    CI = Cast Iron

  • Stock finishes:
    WHT
  • Operating
    up to:
    6bar
  • Delivery:
    3-4weeks
  • Guarantee:
    10yrs

Product information

Height 200mm – 900mm
Width 400mm – 3000mm

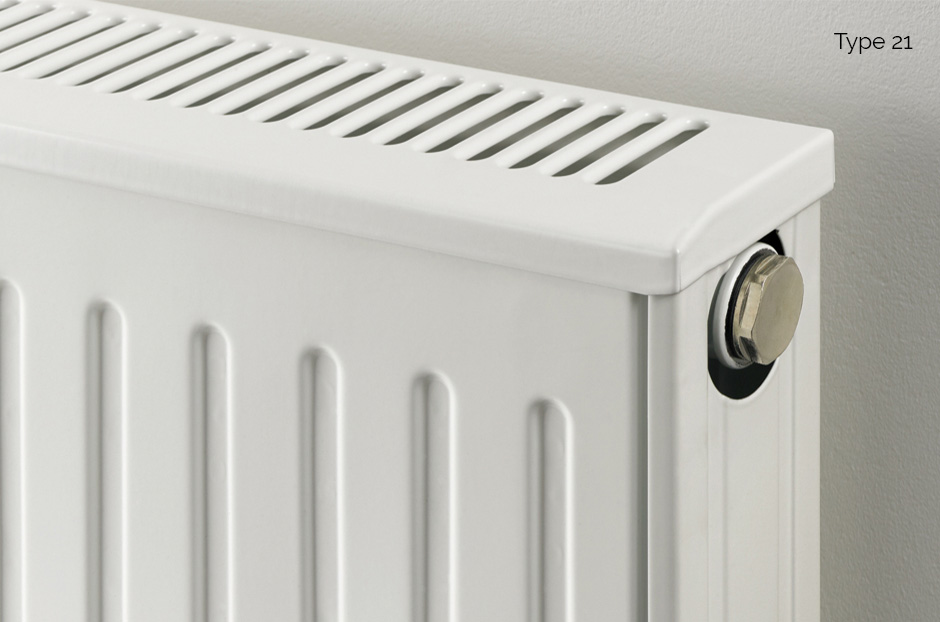

Type Type 20, Type 21, Type 22, Type 33
Output

337 – 7017 watts

Colours

  • Traffic White

    Code RAL 9016

Colour Matching Available

Complementary accessories
